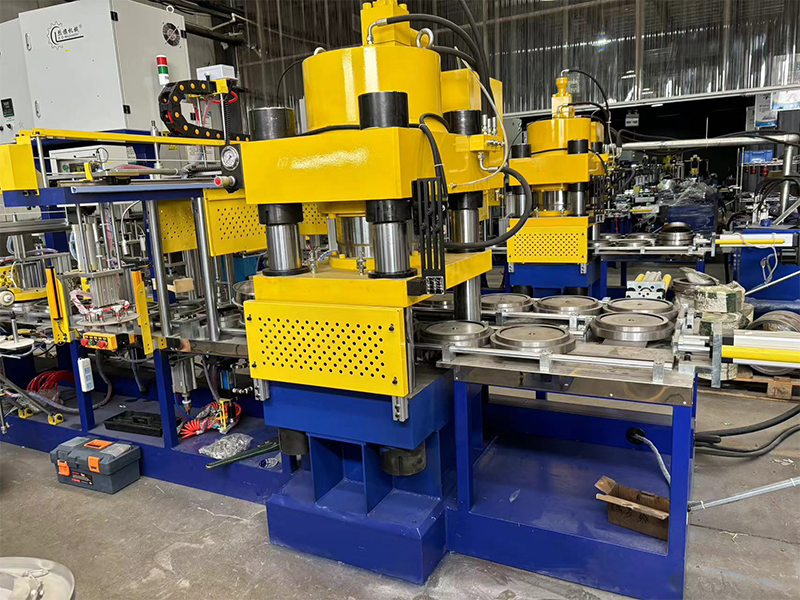

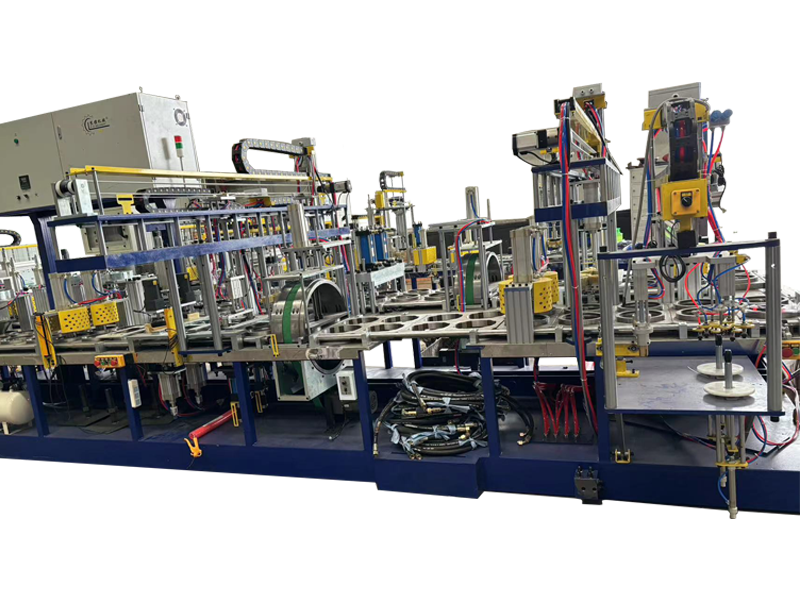

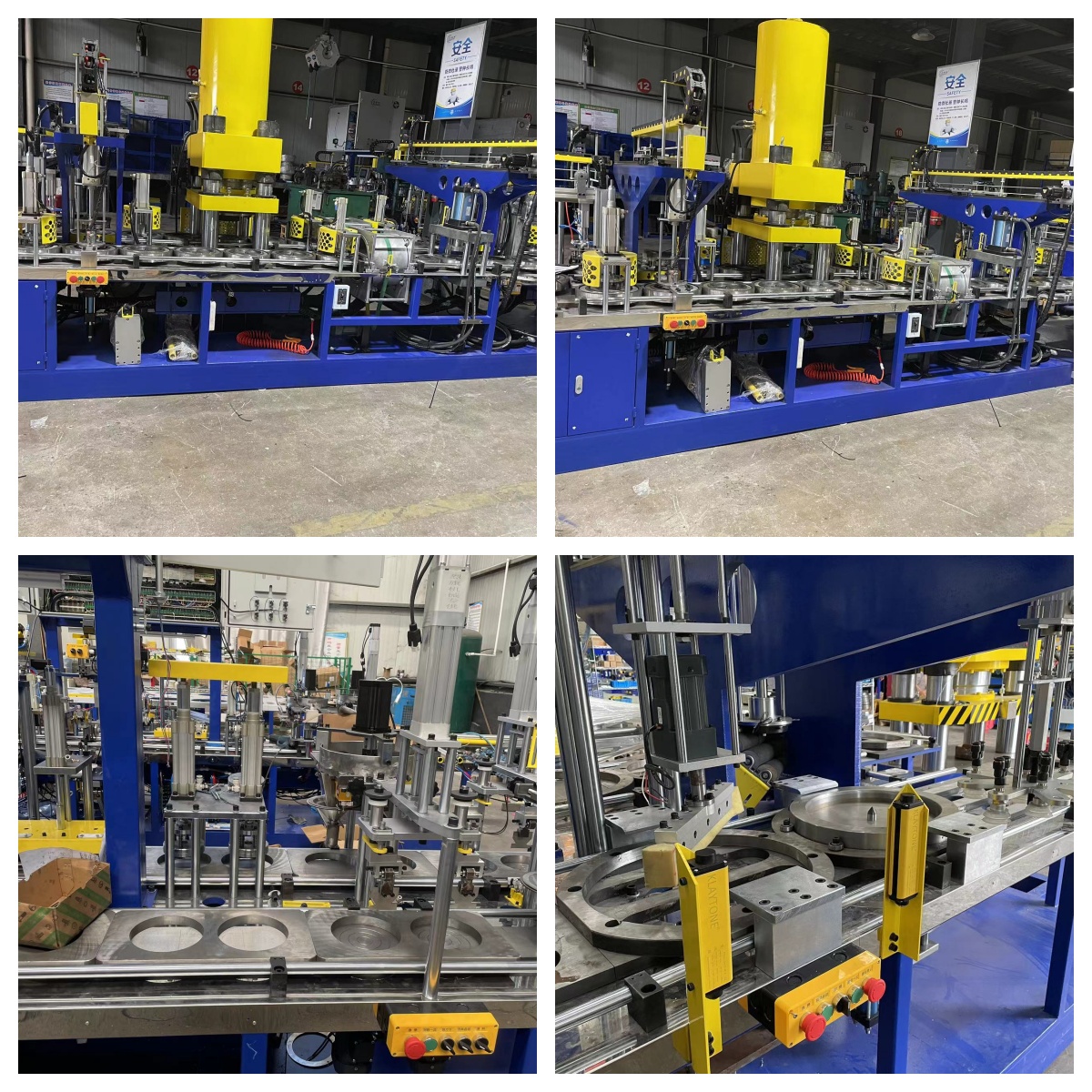

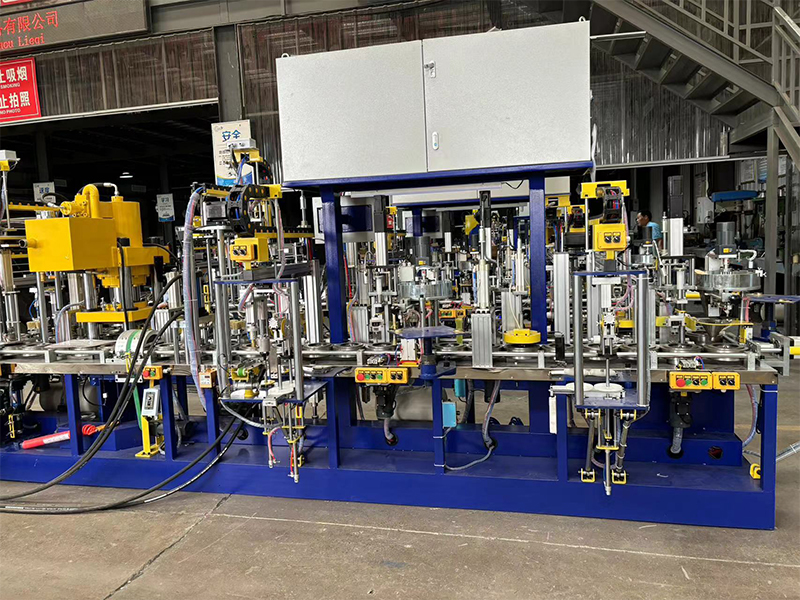

150-230mm cutting disc making machine

‌1. The cylinder transfer mold is used to realize the station transfer. Compared with the rotary structure adjustment, the expensive indexing mechanism and the large turntable are omitted. The structure of the parts is simplified, the cost is reduced, and the disassembly and maintenance are easy. At the same time, due to the characteristics of the pneumatic, the phenomenon that the faulty vehicle is damaged by the crash is avoided, and the safety performance of the work is improved.

2. A set of molds can be used to form grinding wheels of different thicknesses, which greatly reduces mold inventory.

3. The diameter of the grinding wheel can be changed by replacing the main head.

4. If the inlaid steel strip structure mold is used, the user cost can be effectively reduced and the flash edge can be reduced.

5.Considering the actual situation of the operator, the arrangement of the work station is more reasonable, providing the operator with a relaxed and convenient operating environment space.

6. The micro-lifting process of the material can be adjusted according to the grinding wheel process.

7. The operation button box/emergency stop button is distributed in each operator's part for easy operation and manual/automatic operation can be realized separately.

8. The baking net and the bottom mold are heated to provide on-off automatic insulation, which can be adjusted and set according to the changing conditions of the climatic conditions, so as to prevent the phenomenon of cold and heat.

9. Interlocking and one-finger startup are designed in the control system program for the prone to misoperation.

10. Added some auxiliary actions such as suppression prohibition, vertical and horizontal start, etc. for maintenance and repair of equipment, reducing the re-adjustment of equipment during repair and maintenance.

11. The pressure retention mode of the hydraulic system sets the pressure for the pressure relay, and the medium pressure is maintained. The heating phenomenon of the system during continuous operation is greatly improved, and the service life of the oil pump and the seal is prolonged.

12. Rotating and stretching air guns are used for sand cleaning and cleaning equipment.

13.Supporting purchased parts such as reducer (maintenance-free type); hydraulic and pneumatic components; electrical control components, etc., all adopt imported or joint ventures and imported technology to produce products, thus improving the continuous working performance of the whole machine and continuously The operating failure rate is controlled to a very low state.

14. It is convenient to change the mold by supporting the transition ring, the pressure mesh plate, the indenter, the scraper, etc., to realize the change of product variety and specification.
